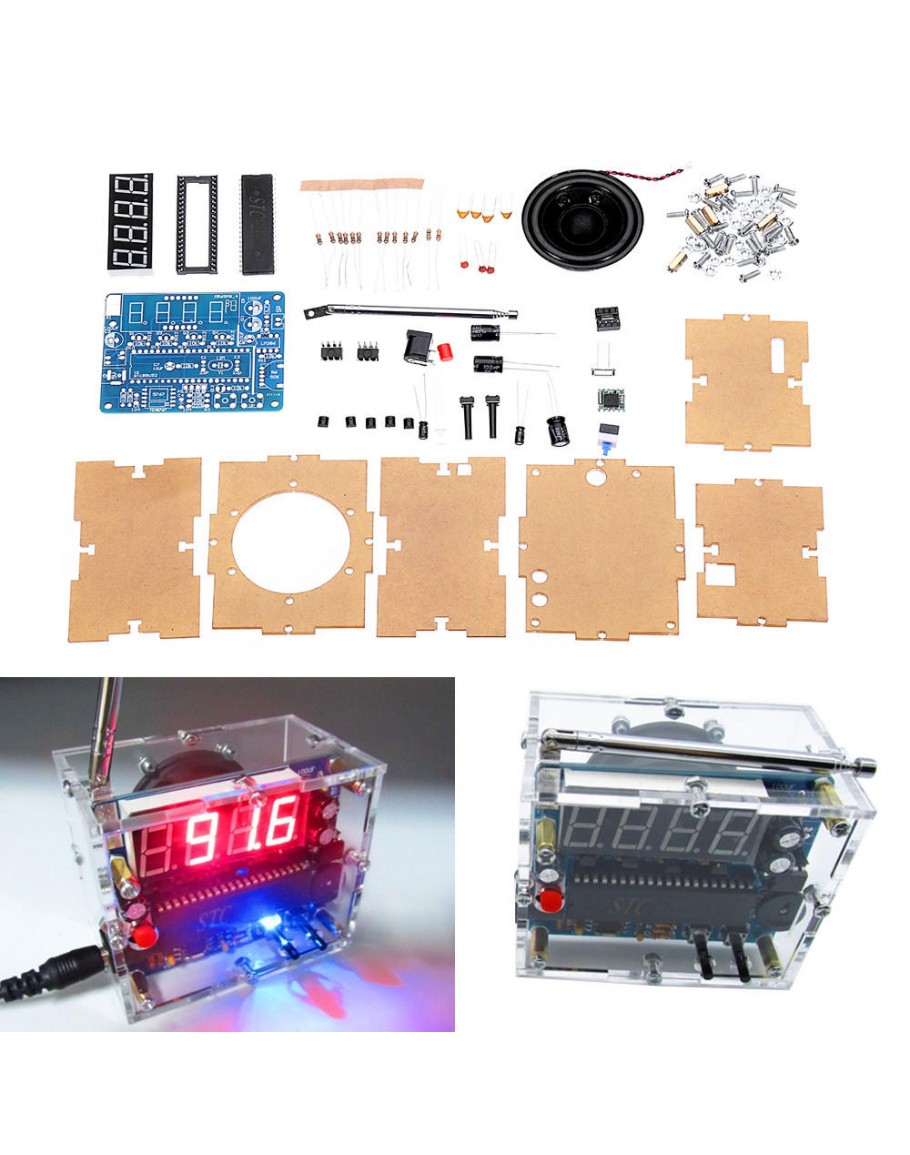

TEA5767 DC 4.5V-5.5V DIY Mini Digital FM Radio 87MHZ-108MHZ 2W 8ohm Speaker Electronics Kit
- $13.89
Feature:
Board size: 7.7 x 6.1cm
Operating voltage: DC 4.5V-5.5V
DC power supply, inside positive outside negative, do not connect reverse
FM range: 87MHZ-108MHZ
FM step: Click once step 0.1MHZ, long press FM button can add and subtract continuously
Function: Digital display frequency function, power off memory function, power saving function
With power-off memory function
Introduce the power-saving function: After each power-on or press the FM key, the digital tube displays the frequency for 5 seconds. After 5 seconds, the digital tube display will be automatically turned off. There are two reasons for this design. 1 is power saving, and 2 is the digital tube. Disturbing sound when displayed, turning off the digital tube monitor, the sound is more beautiful

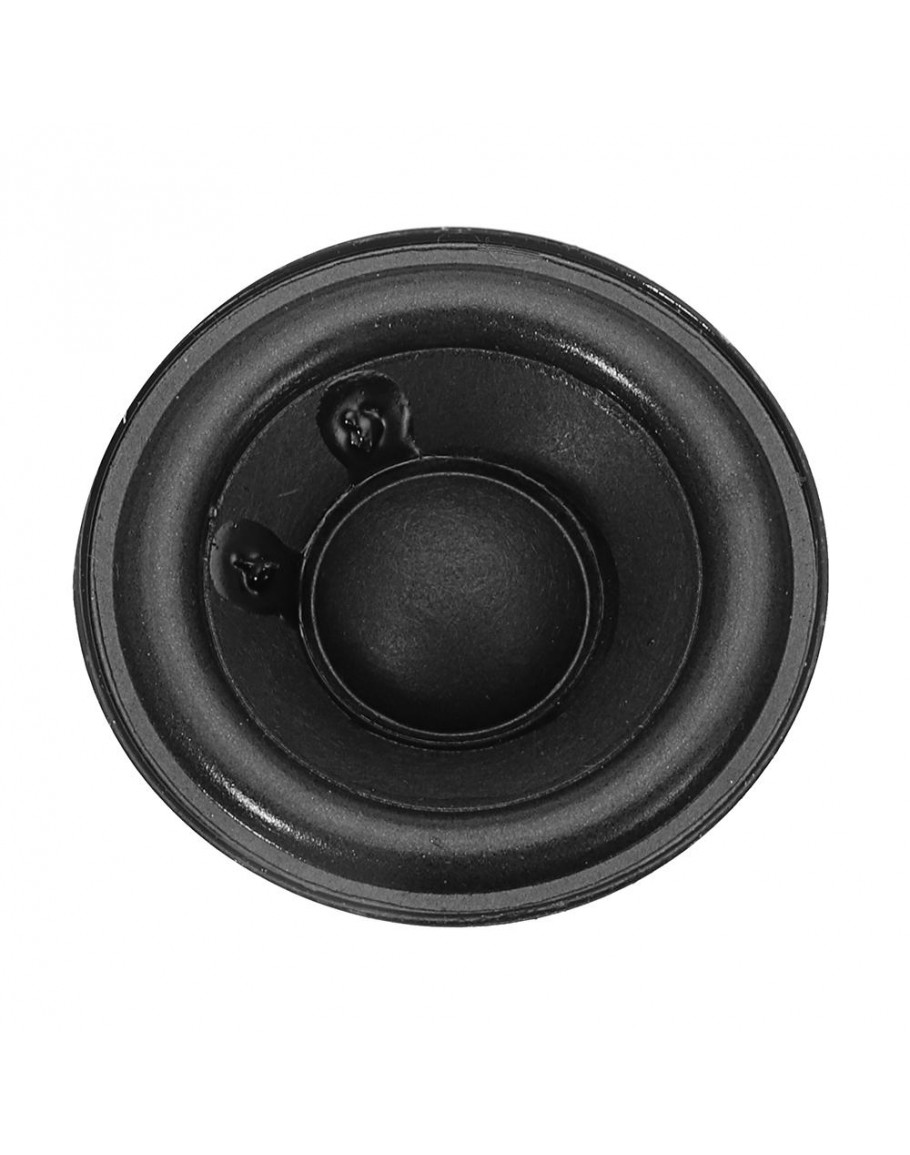

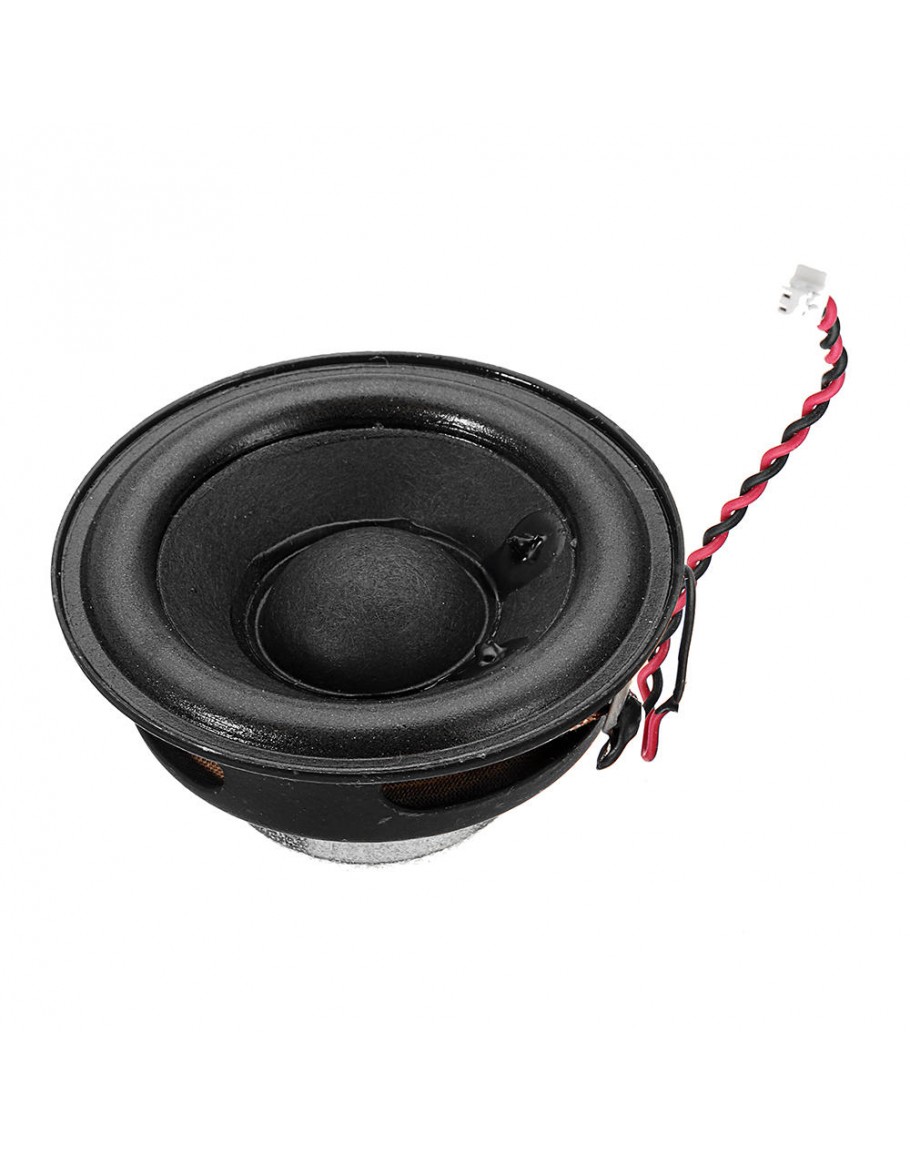

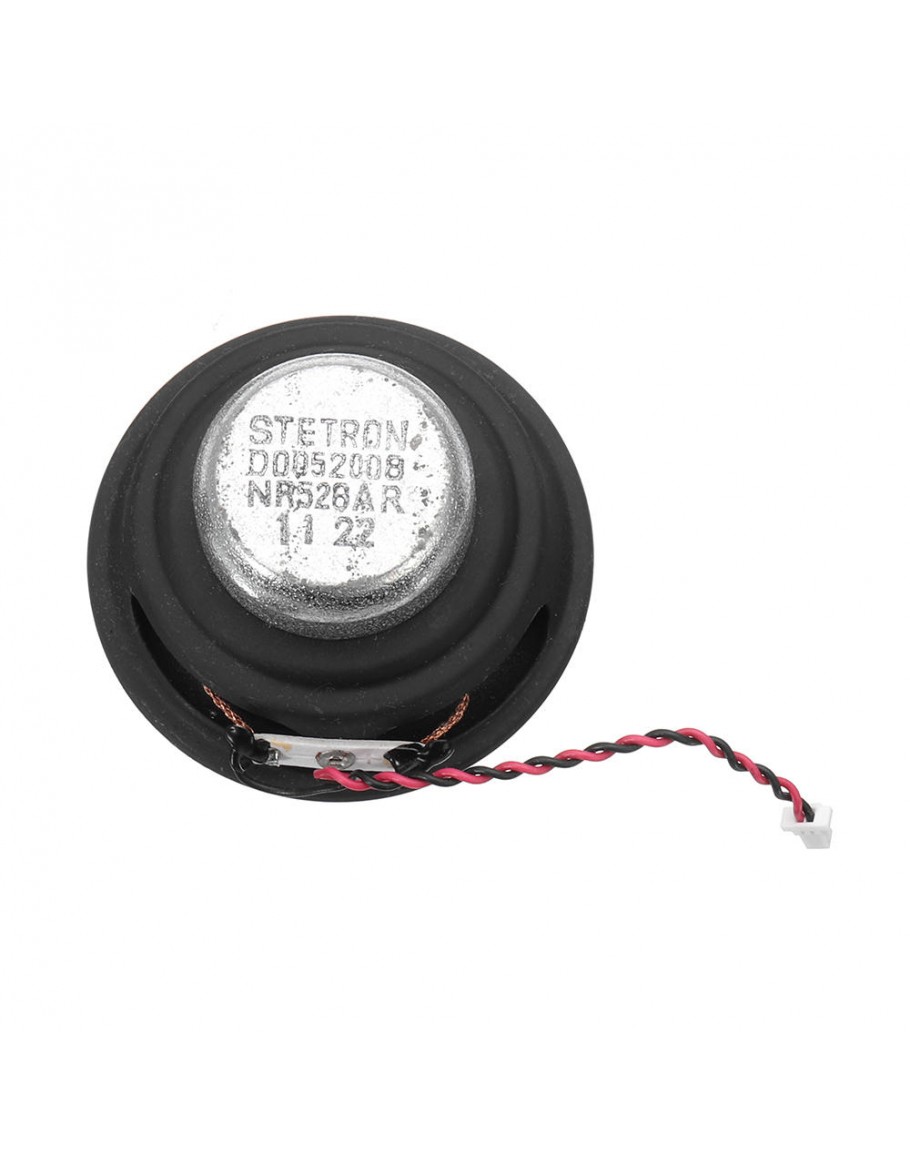

Speaker: 2W 8ohm

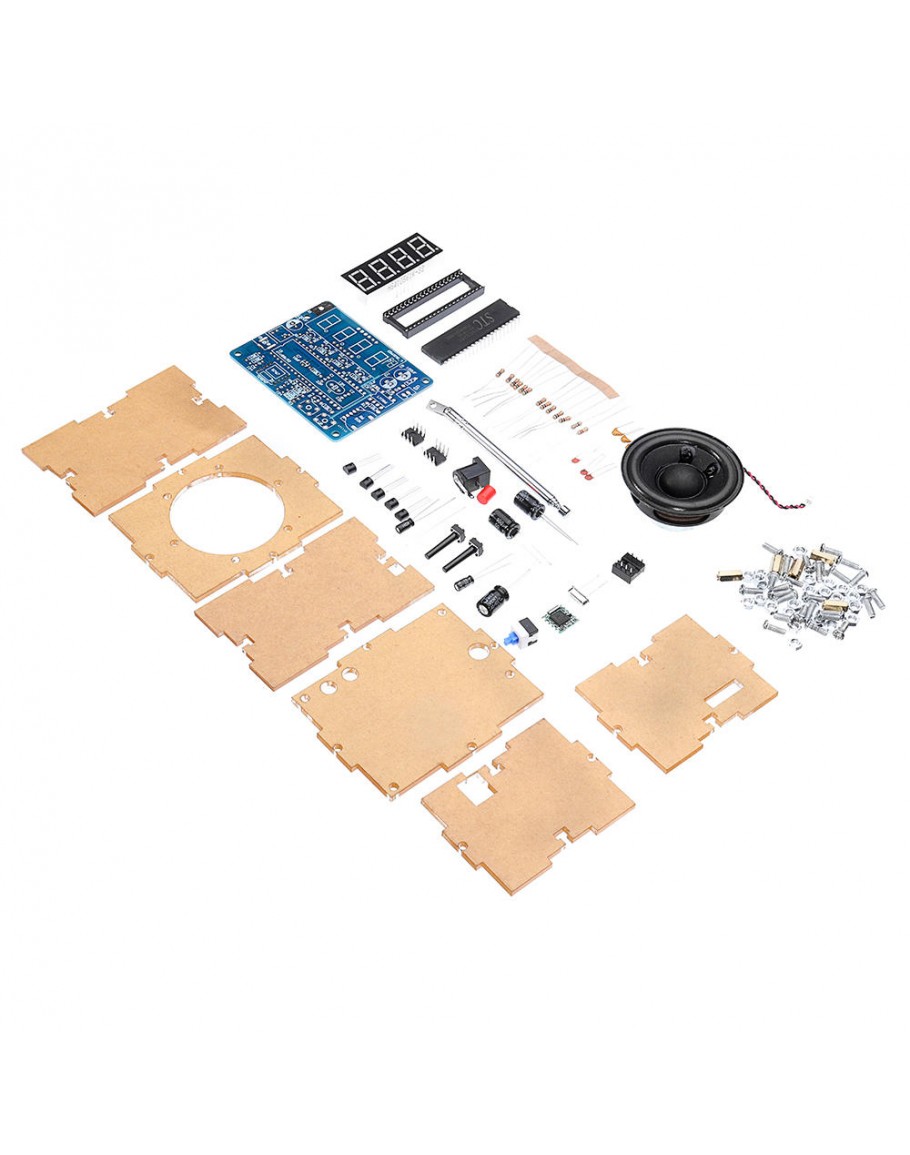

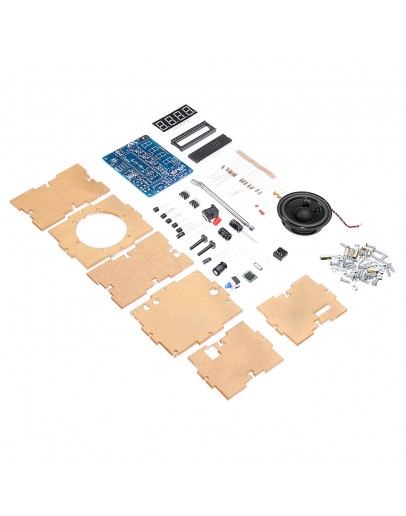

Package includes:

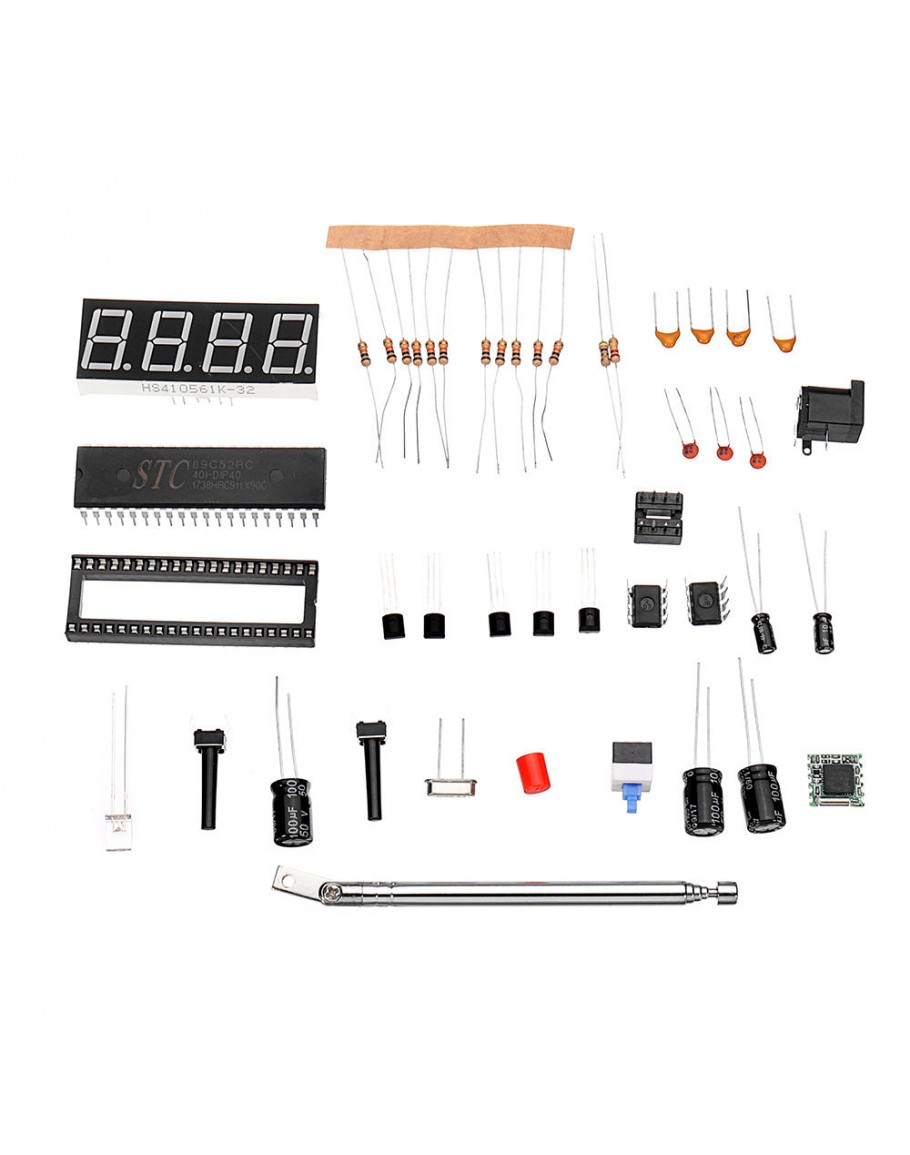

Package includes:

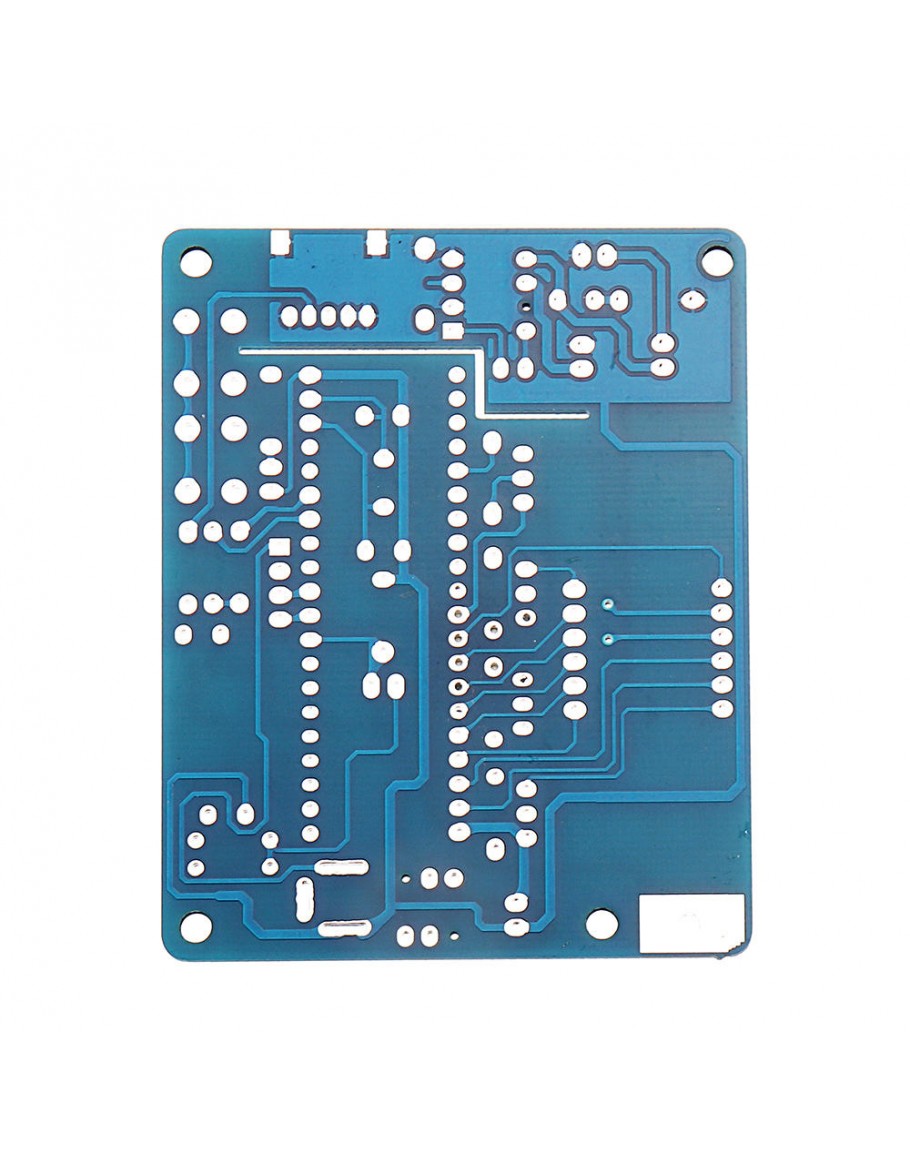

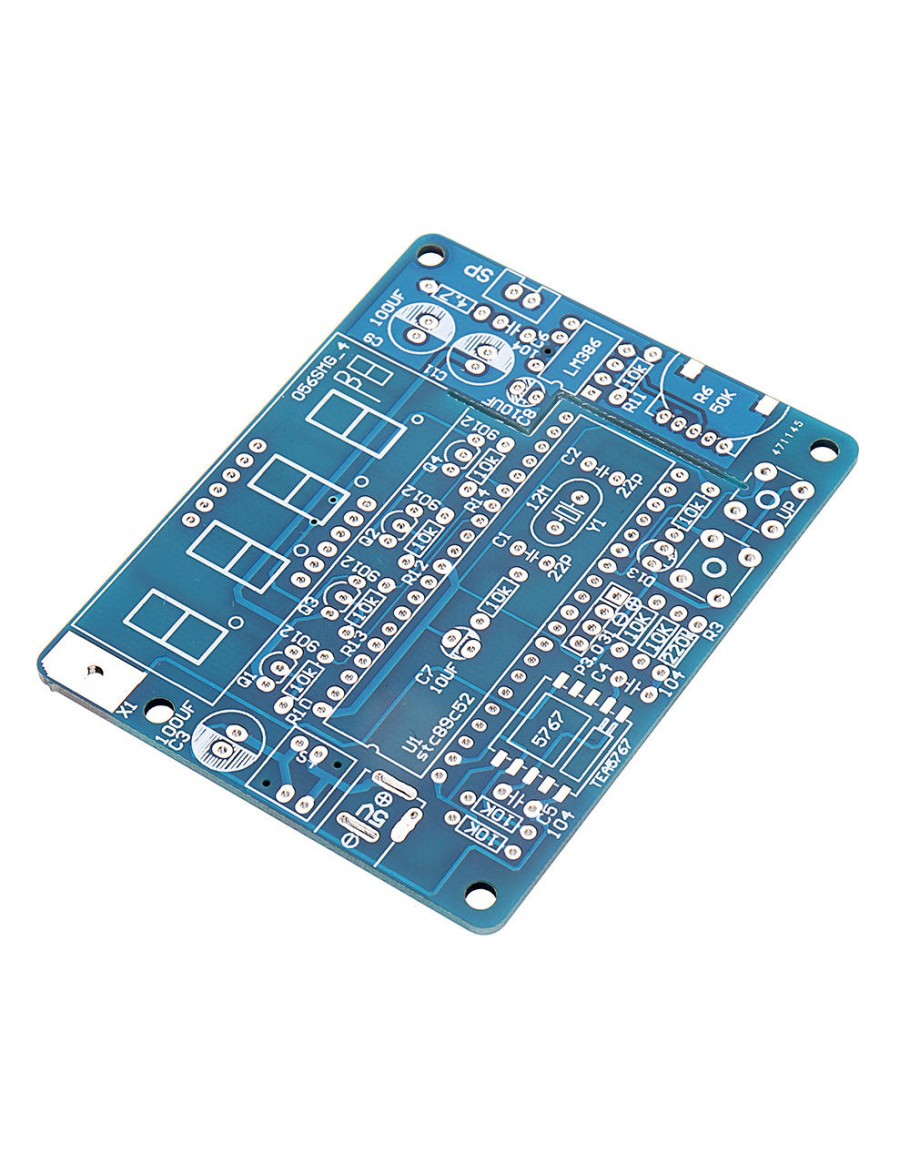

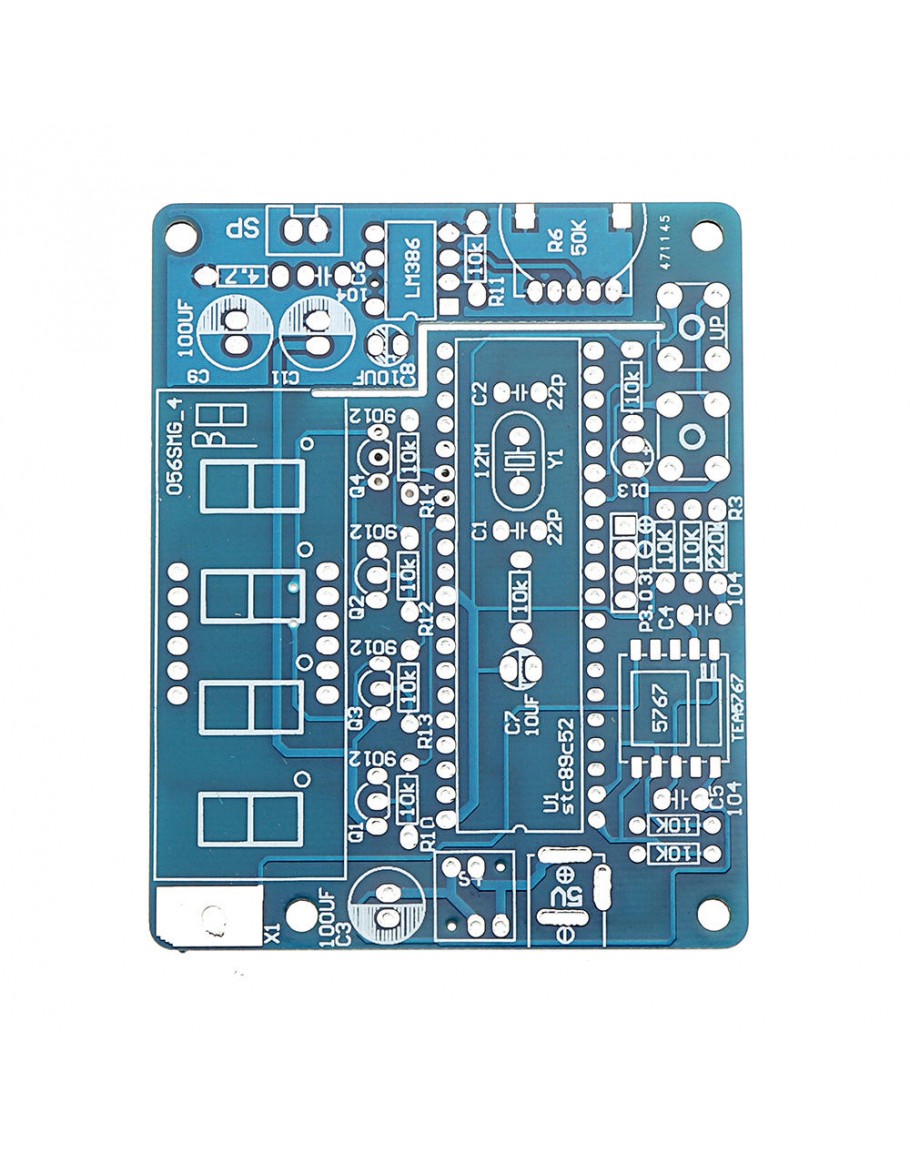

1 x PCB board
1 x 262 small antenna

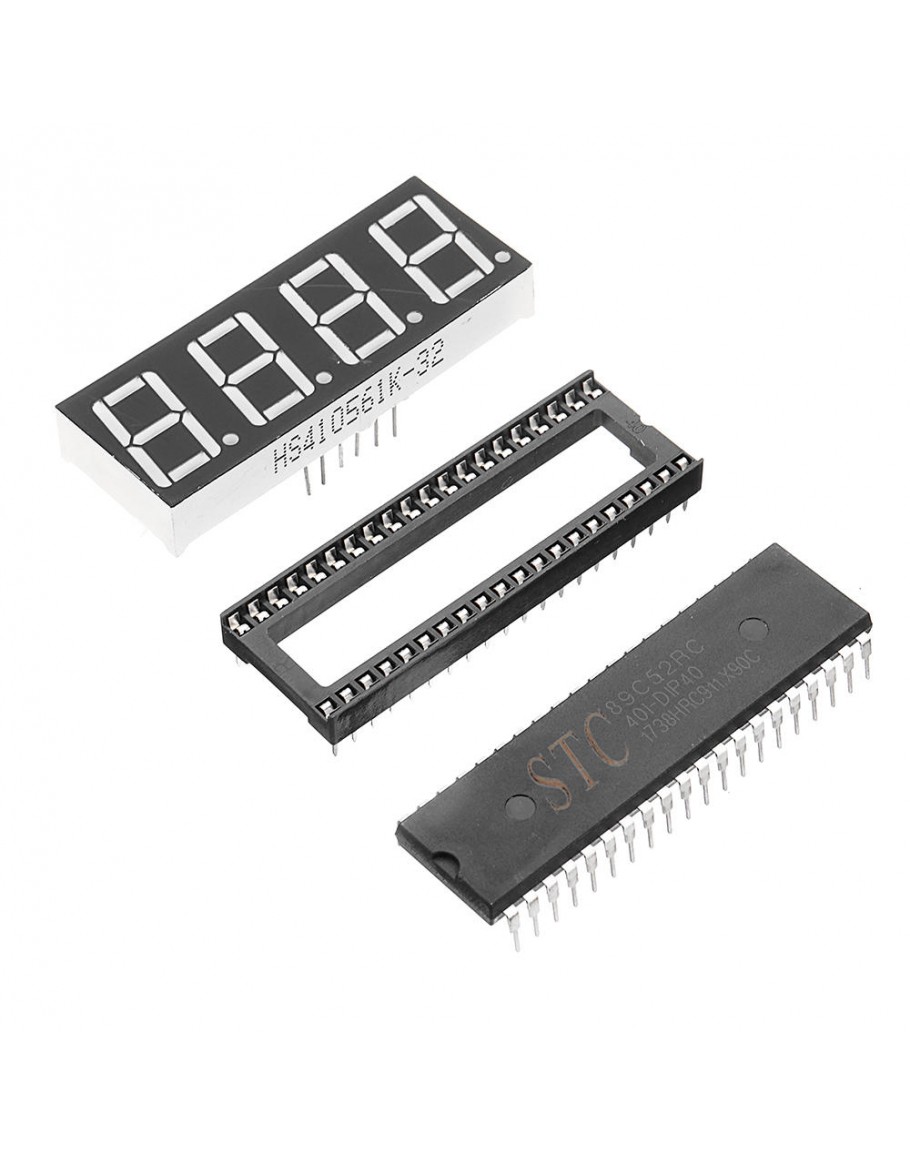

1 x 0.56 inch 3-digit common cathode digital tube
3 x 100UF 50V electrolytic capacitor
2 x 10UF 25V electrolytic Capacitors
3 x 22P ceramic capacitors
4 x 104 monolithic capacitors
1 x 8*8 self-locking switch
1 x 7MM high self-locking switch cap
1 x DC005 socket
1 x 4.7 ohm resistor
11 x 10K resistor
1 x 220K resistor
5 x 9012 triode
1 x 13.56M crystal
1 x TEA5767 radio module
2 x 6*6*20 button
1 x 2*5*7 LED
1 x 50K dial potentiometer
1 x 8P IC socket
1 x 40P IC socket
2 x LM386 chip
1 x STC89C52 (program burned)

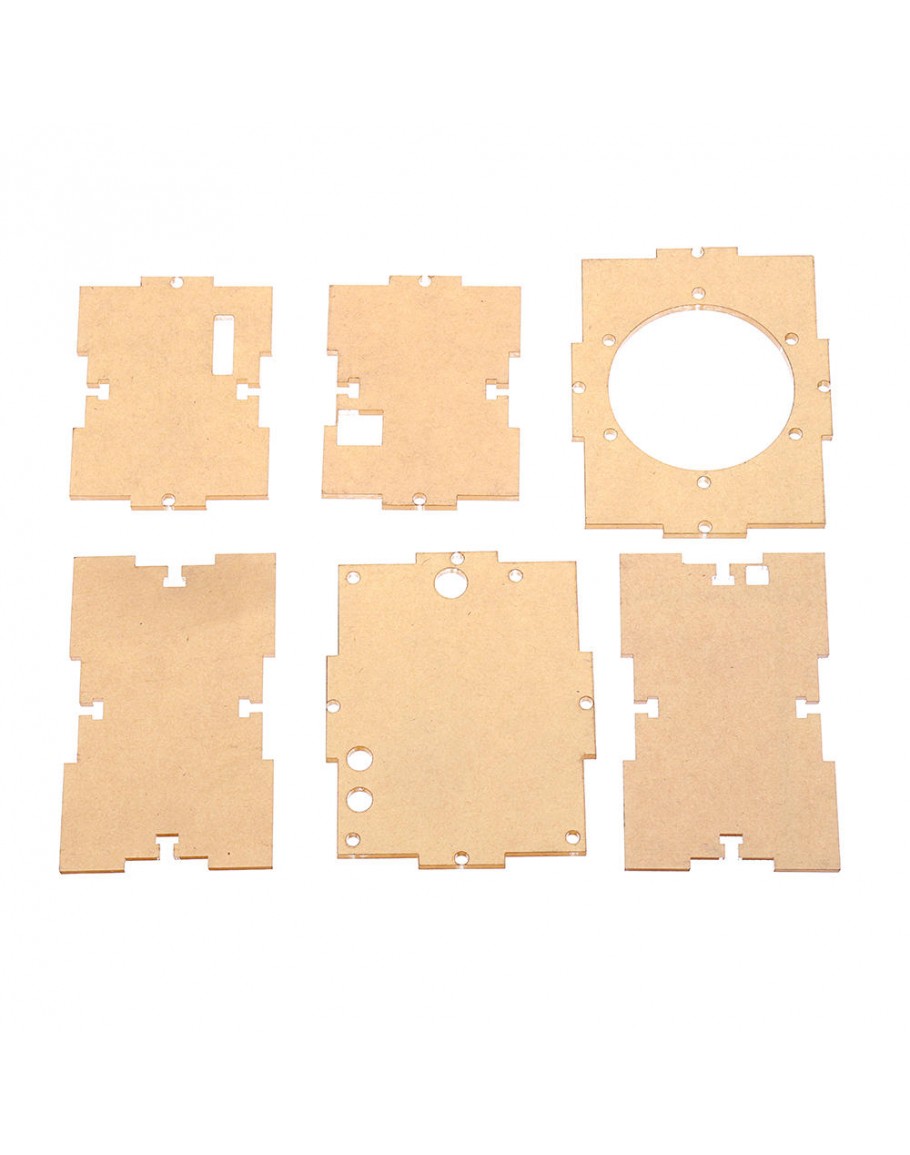

1 x Acrylic plate (set)

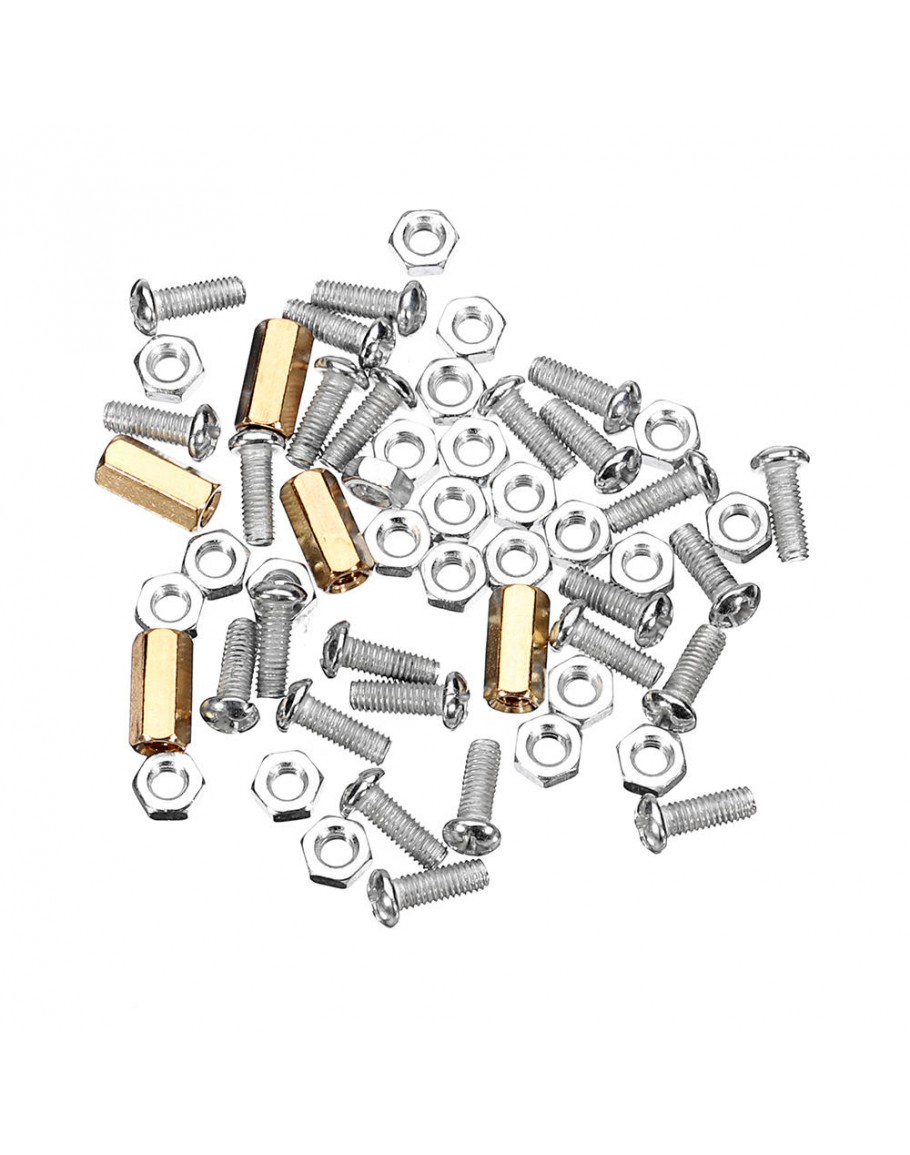

25 x M3*8 screws
25 x M3 nuts
5 x 10MM Double Copper Post
