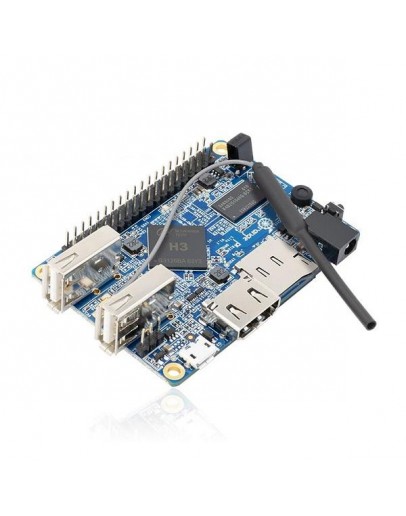

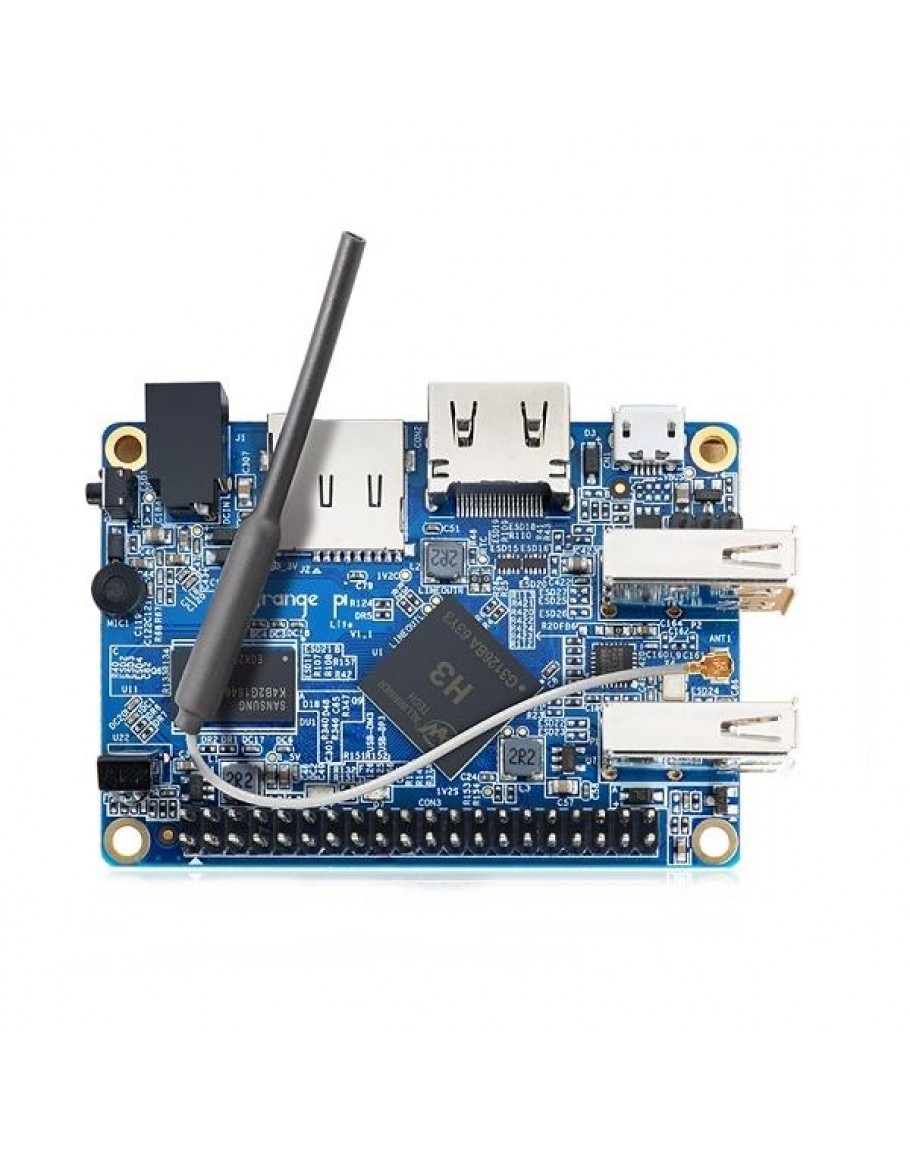

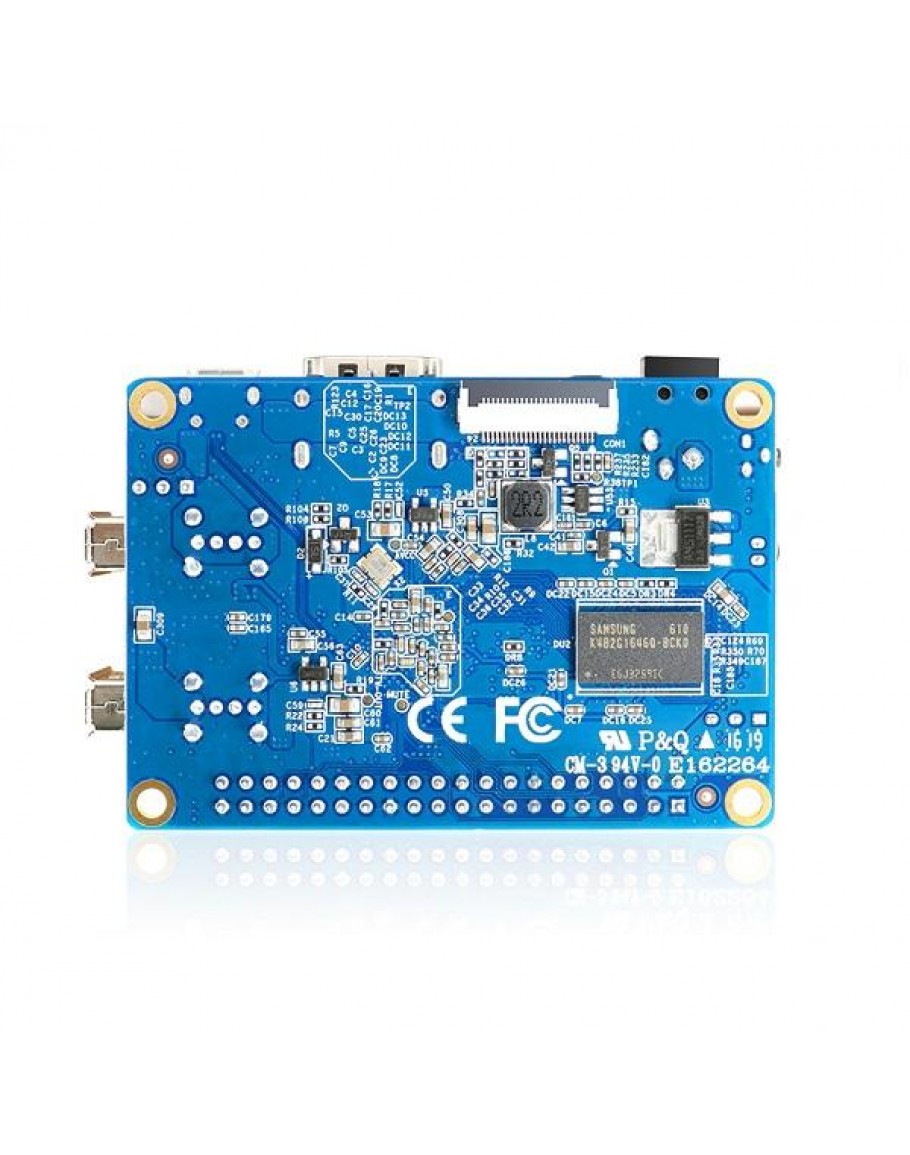

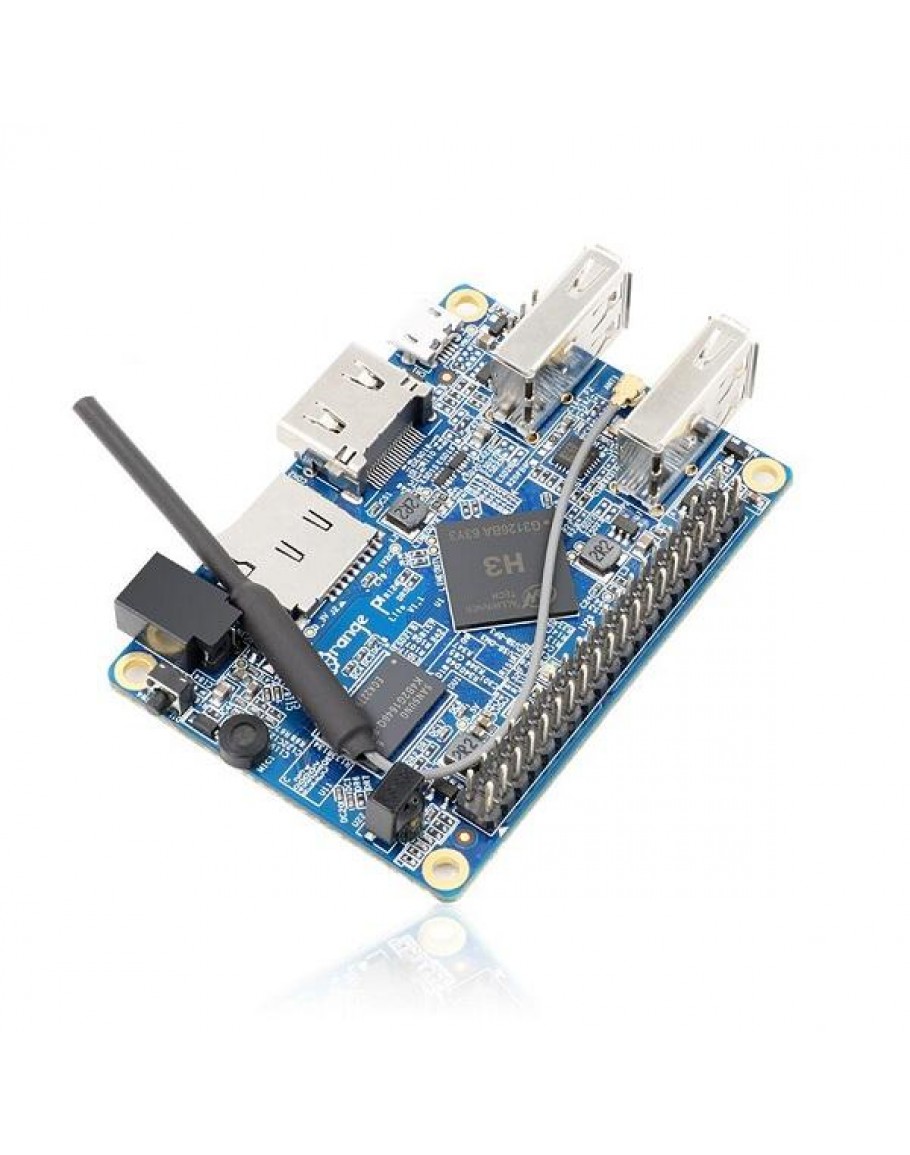

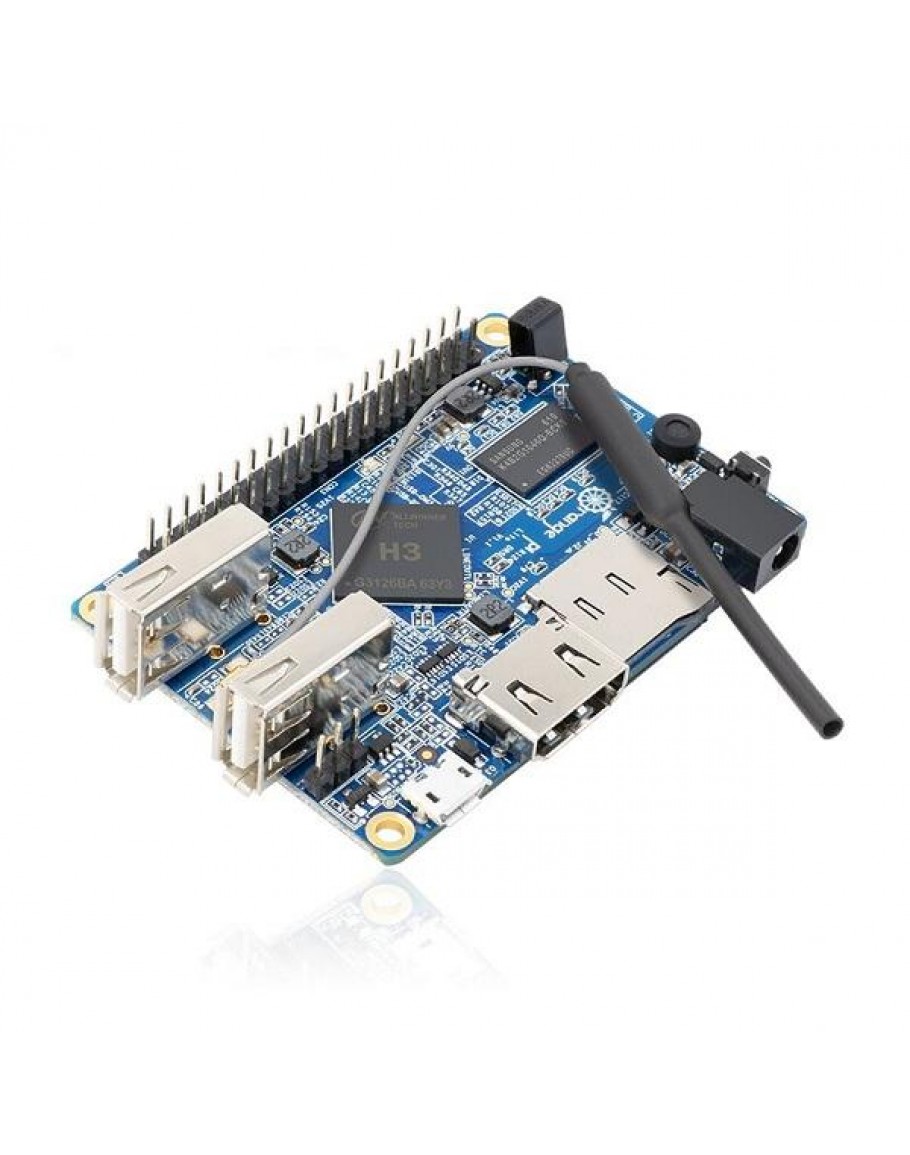

Orange Pi Lite with Quad Core 1.2GHz 512MB DDR3 WiFi Mini PC
- $23.11
Description:- What’s Orange Pi Lite?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM
- Who’s it for?
Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
- What can I do with Orange Pi Lite?
You can use it to build…
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi is open source
| Hardware specification | |
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU | ·Mali400MP2 GPU @600MHz ·Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 512MB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot |
| Wifi Antenne | Yes |
| Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps |
| Audio Input | MIC |
| Video Outputs | Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function |
| Audio Output | HDMI |
| Power Source | DC input, USB OTG input don't supply power |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+ |
| GPIO(1x3) pin | UART,ground. |
| LED | Power led & Status led |
| Key | POWER |
| Supported OS | Android Lubuntu, Debian, Rasberry Pi Image |
| Interface definition | |
| Product size | 69mm × 48mm |
| Weight | 36g |
| Power supply | 5V 3A |
| Operating Temperature | -10 ~ 65℃ |
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited | |
Notes:1. Number will change at any time, affected by the offline stores and local procurement
2. It is best to buy a good quality DC 5V/3A charger . Because Orange Pi doesn't support Micro USB Power supply.
Orange Pi requires a memory card beyond 8g, class10Click for more info
Package included:1 x Orange Pi Lite
