Lichee Pi NanoFW(16M) Cross-Border Core Board ARM 926EJS 32MB DDR with WIFI Module + TF WIFI Adapter Development Board Mini PC
- $12.70
Specifcation sheet (←click for more info.)
Description:

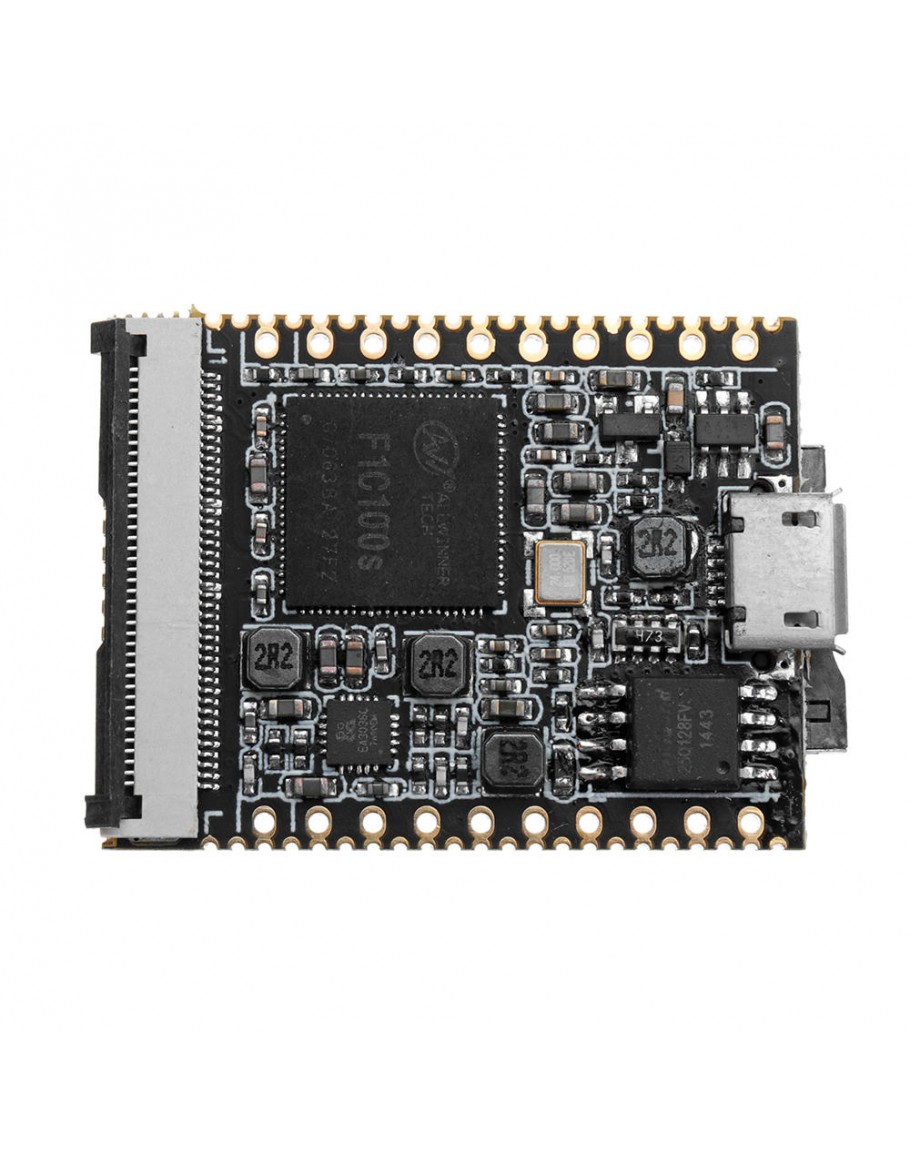

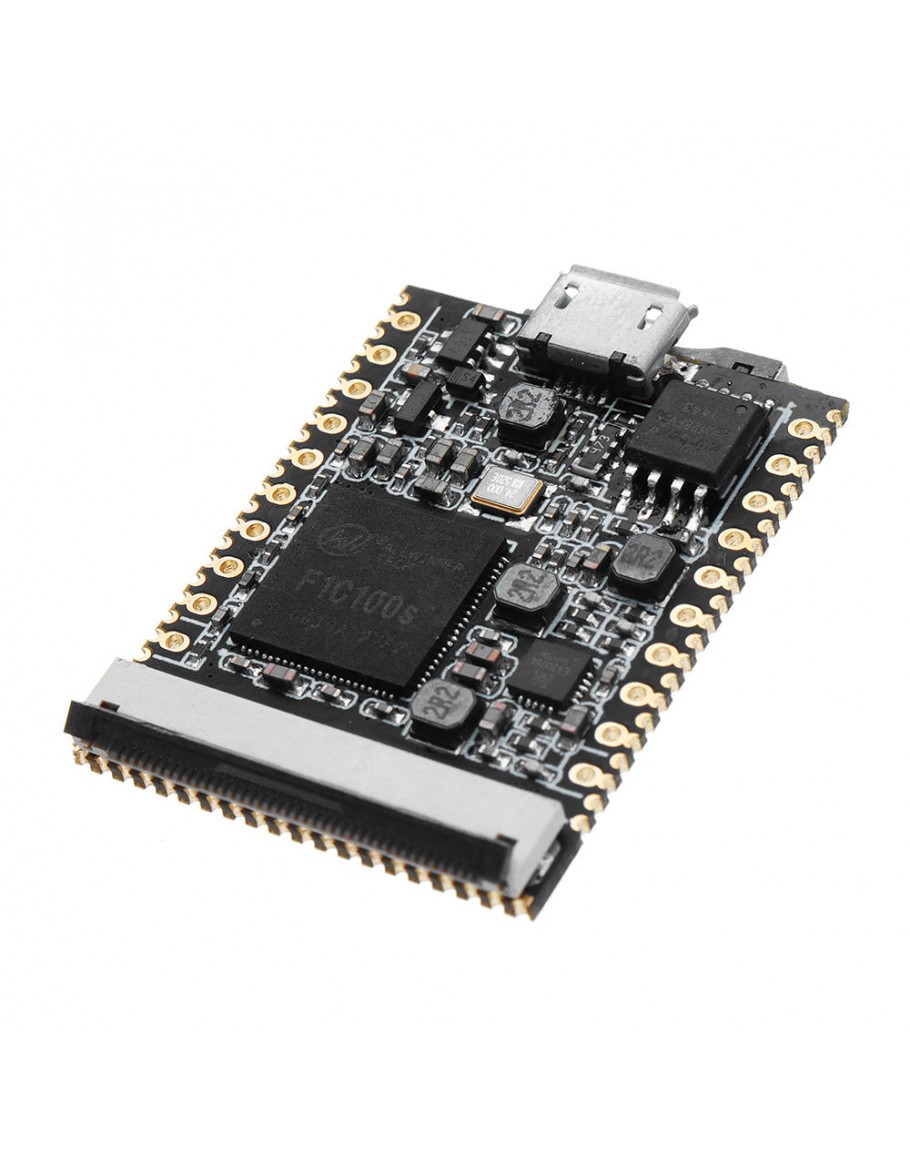

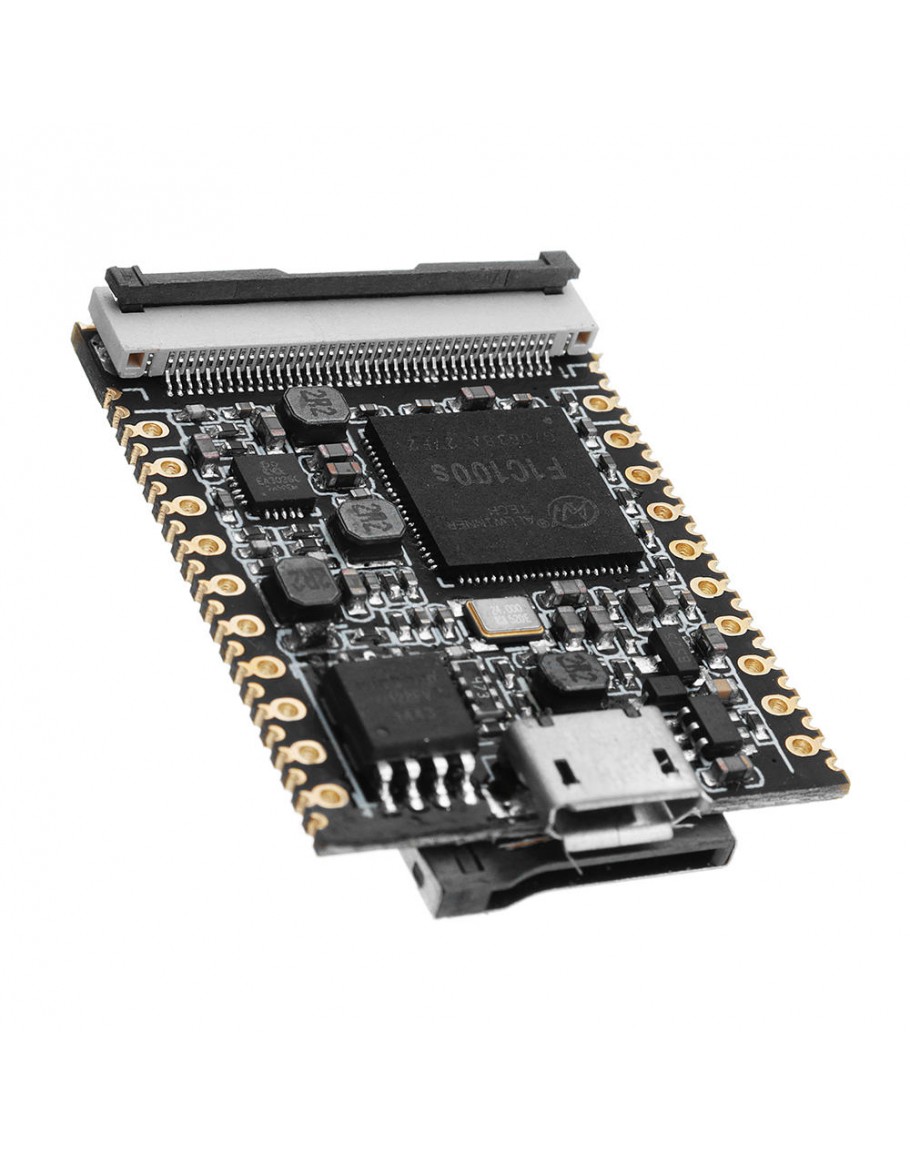

Using F1C100s as the main chip of lichee pi Nano, Arm9 architecture, 16KB D-Cache, 32KB I-Cache, support boot from SPI Flash or TF card, support USB OTG loading update.
Hardware parameter
Description:
Using F1C100s as the main chip of lichee pi Nano, Arm9 architecture, 16KB D-Cache, 32KB I-Cache, support boot from SPI Flash or TF card, support USB OTG loading update.
Hardware parameter
CPU: All-in-one F1C100s, ARM 926EJS, up to 900MHz
RAM: Integrated 32MB DDR
Storage:
Reserved SOP8 SPI Flash pad (16M Flash)

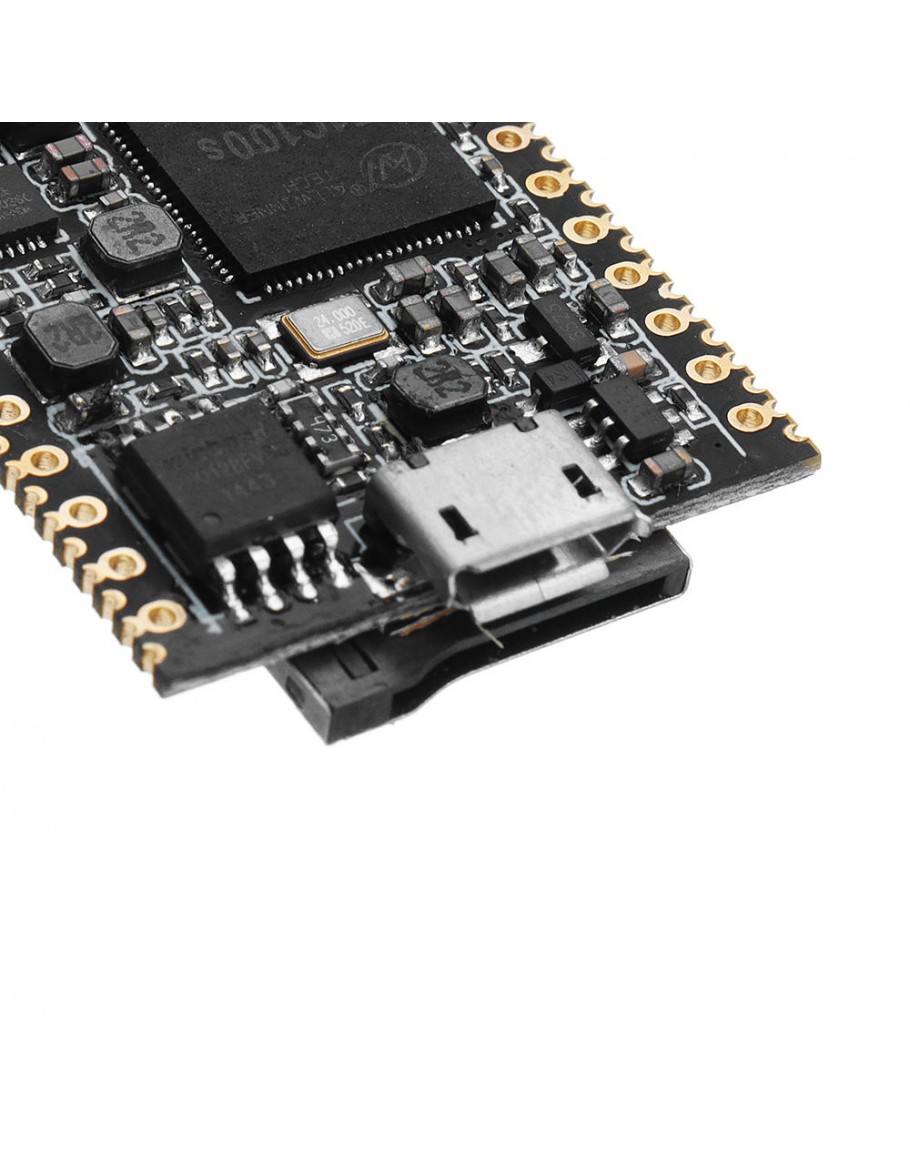

Onboard TF card holder, can be started by TF. The tf wifi module can be added.
Display:
Universal 40P RGB LCD FPC Block
Can be directly inserted into the common 40P 4.3/5/7 inch screen (onboard backlight driver), through the adapter board can be inserted 50P 7/9 inch screen
Support 272x480, 480x800, 1024x600 and other resolutions
On-board resistive touch screen chip supporting resistive screen
Support 720P video output
Support video stream decoding such as H.264 / MPEG
Communication Interface:
SDIO, can be used with the supporting SDIO WiFi module
SPI x2
TWI x3
UART x3
OTG USB x1
TV out x 1, TV in x 2
Other interface:
PWM x2
LRADC x1
Speakerx2 + Mic x1
Electrical characteristics:
Micro USB 5V power supply; 2.54mm pin 3.3V~5V power supply; 1.27mm stamp hole power supply
Output 3.3V, selectable input RTC voltage
900MHz linux no-load operating current 54mA, with screen operating current ~250mA
Storage temperature -40~125°C, operating temperature -20~70°C
Support:
CSI Camera
Full HD Video Engine(H.264,H.263,JPEG/MJPEG,etc.)
RGB LCD Interface
CVBS Input/Output
Audio Codec
I2S/PCM
SD/eMMc
Any quesion, can join this telegram group for communication.

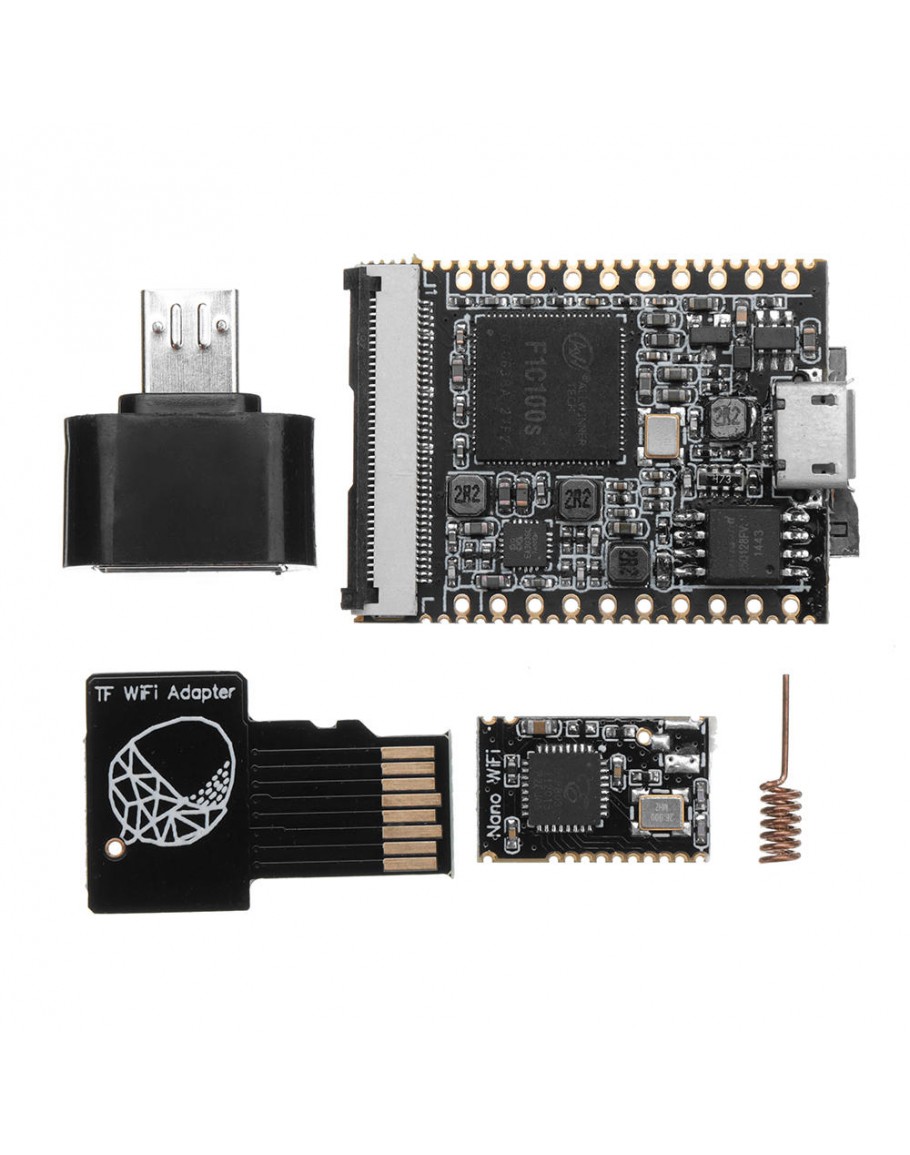

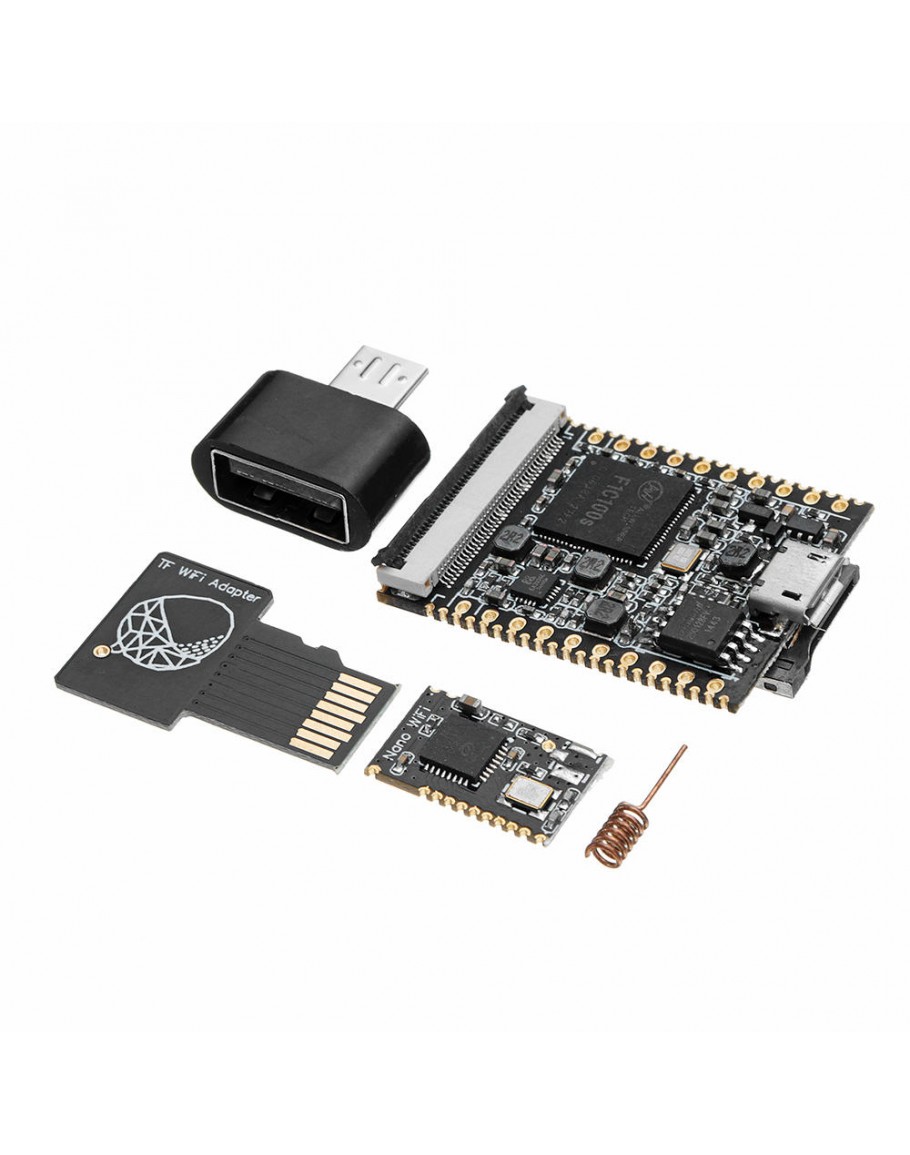

Package Included:

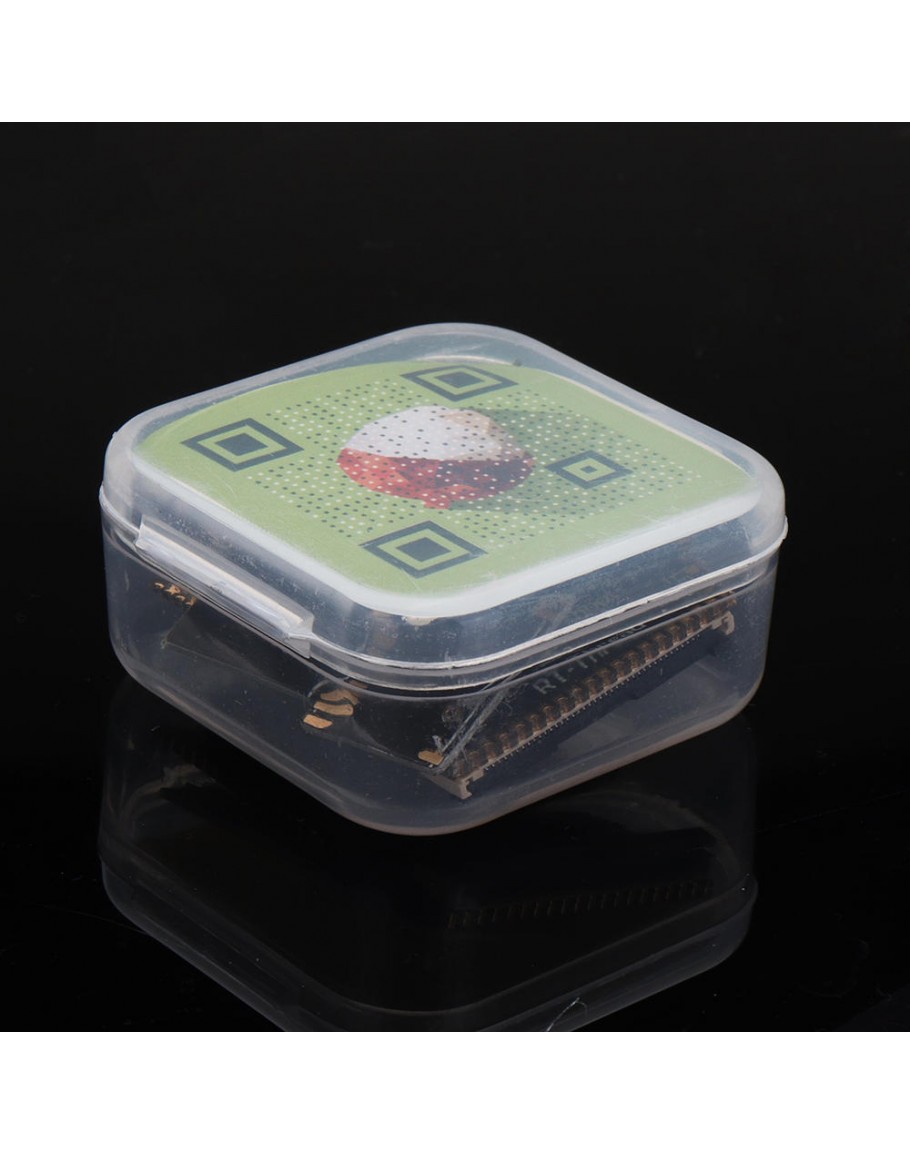

1x Lichee pi Nano board

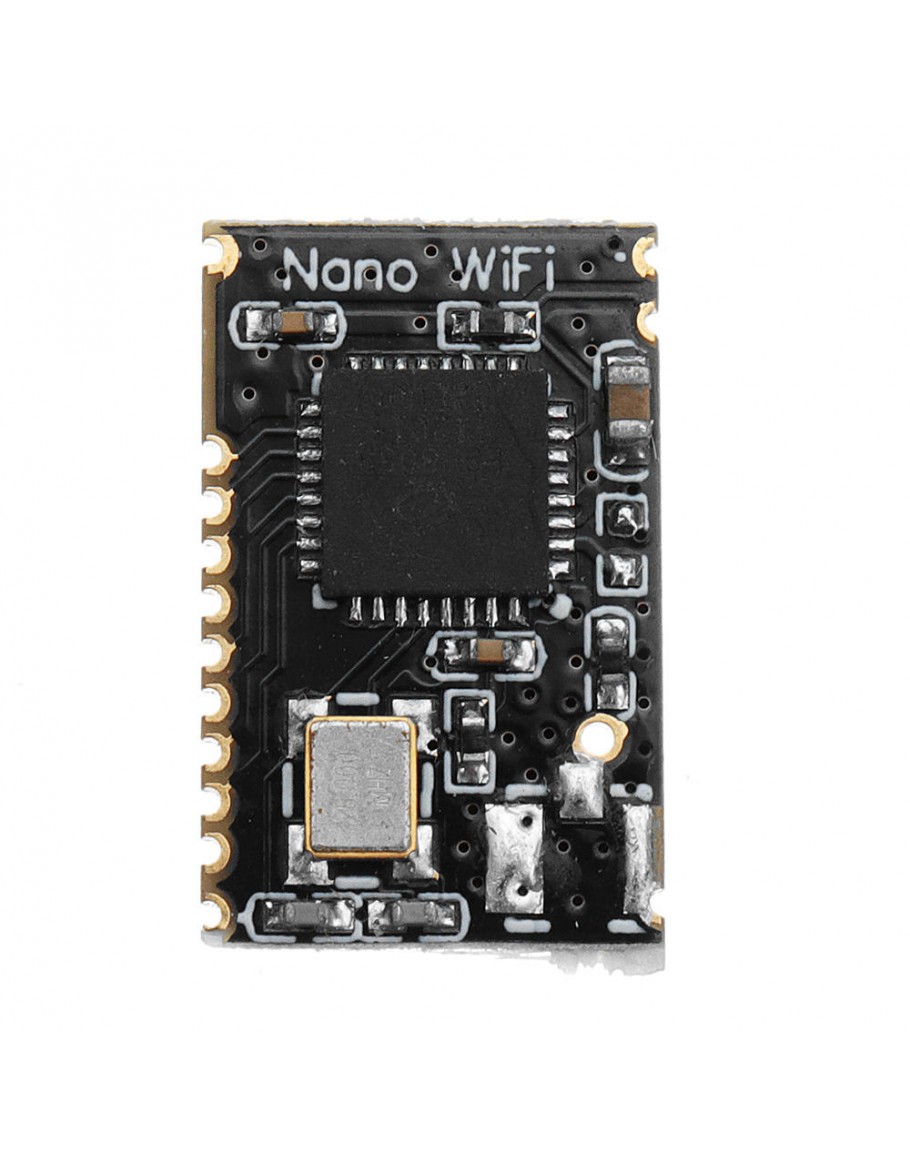

1x WIFI module

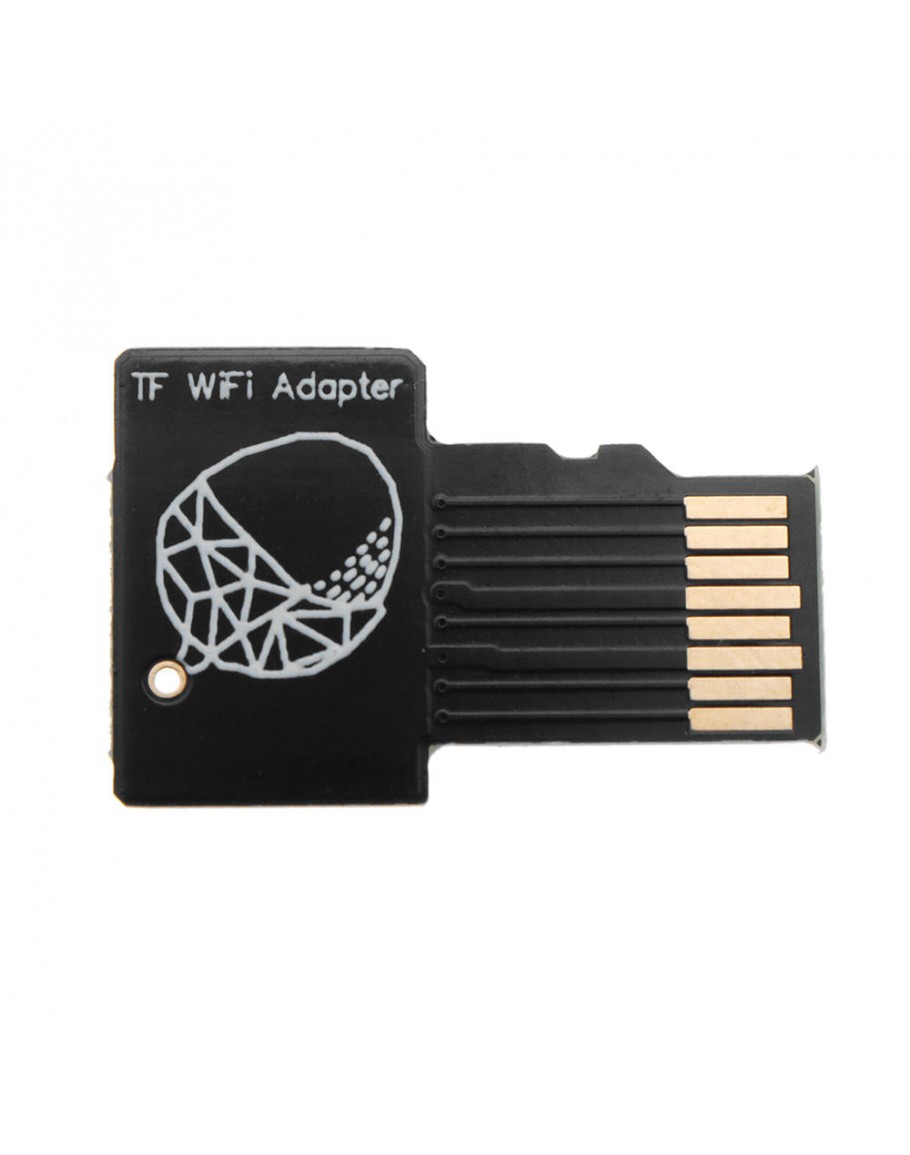

1x TF WIFI adapter

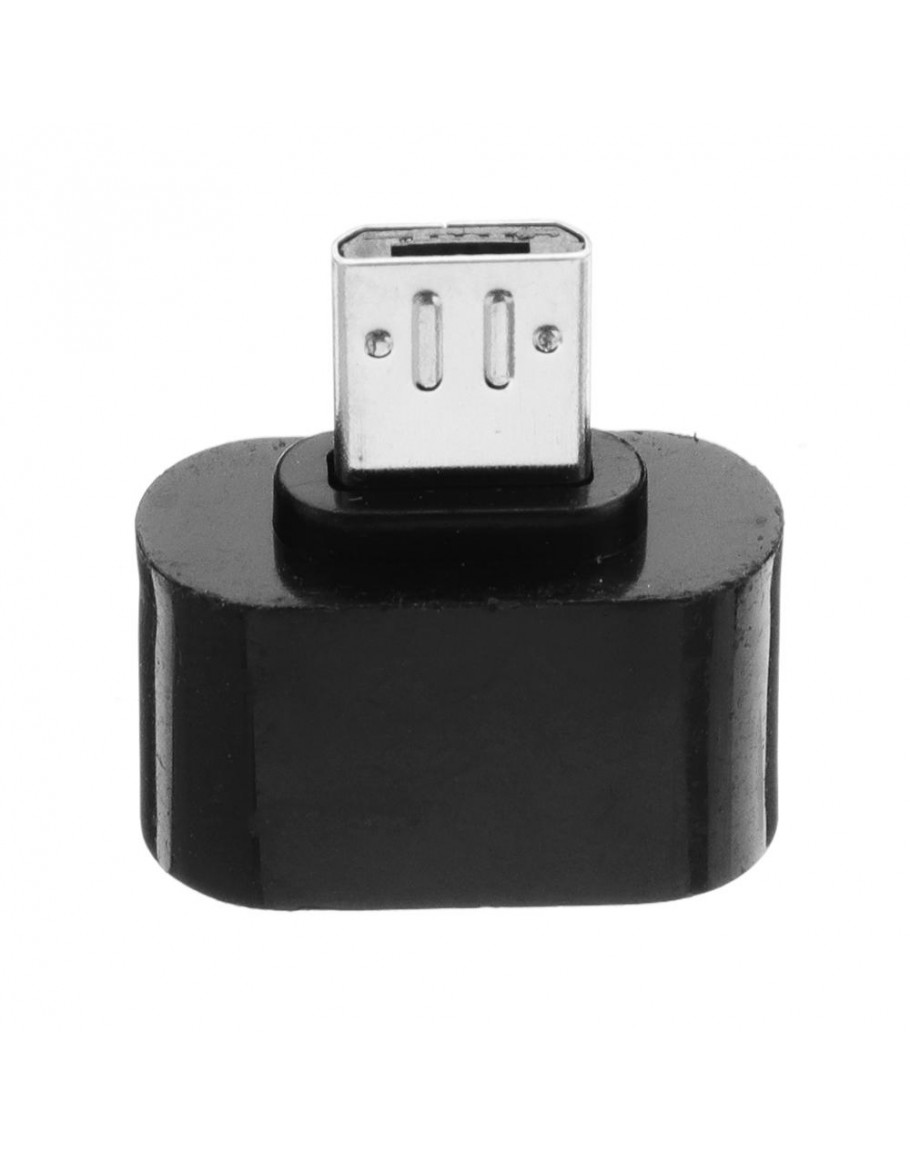

1x Adapter
